ASTM A355 P22 DN400 Sch80 Seamless Low-alloy Heat-resistant Steel Pipe

ASTM A355 P22 DN400 Sch80 Seamless Low-alloy Heat-resistant Steel Pipe

نام تجاری:	WUXI SYLAITH
شماره مدل:	S45C
مقدار تولیدی:	1 MT
قیمت:	negotiable
شرایط پرداخت:	T/T، L/C
توانایی عرضه:	500 تن در ماه

اطلاعات دقیق

توضیح محصول

اطلاعات دقیق

محل منبع:

گواهی:

SGS ISO ROHS

تکنیک:

نورد سرد

مدت قیمت:

CIF CFR FOB EXW

خدمات پردازش:

خم کردن، جوشکاری، روکش کردن، پانچ کردن، برش

ضخامت:

1.24 - 60 میلی متر یا در صورت نیاز

استفاده:

حمل و نقل لوله، لوله دیگ بخار، صنایع شیمیایی

درمان سطحی:

نقاشی روغنی/سیاه

جزئیات بسته بندی:

بسته بندی استاندارد ضد آب

قابلیت ارائه:

500 تن در ماه

توضیح محصول

ASTM A355 P22 DN400 Sch80 Seamless Low-alloy Heat-resistant Steel Pipe

P22 is not a carbon steel pipe, but a low-alloy heat-resistant steel pipe (chromium-molybdenum steel). Its main features are:

Material: 2.25Cr-1Mo (2.25% chromium, 1% molybdenum), in accordance with ASME SA-335 standard

Application: Suitable for high-temperature and high-pressure conditions in power stations, petrochemical industries, etc. The maximum operating temperature is approximately 565℃.

Advantage: The high-temperature creep strength and oxidation resistance are significantly superior to those of ordinary carbon steel.

Note: Welding requires preheating (at 200-250℃) and post-weld heat treatment; otherwise, cracks are likely to occur.

Type		Welded pipe/ Seamless carbon steel pipe / Line Pipe/spiral tube/oil pipe /SSAW/SAWH Pipe/
Standard		ASTM A500/AS1163/BS1387/JIS G3466/EN10210/EN10219/ASTM A501
Materials		Q195/Q215/Q235/Q275/S235/S275S355/A36/SS330 10#/20#/16Mn/SS400/API 5L /A53 /A106 GRADE B ASTM A53/A252/A500 API 5L PSL1/PSL2 Gr.A,Gr.B,X42,X46,X52,X56,X60,X65,X70 other material which client inquired
Size	Outer Diameter	17-914mm 3/8"-36" 10-1200mm 219mm-4064mm
	Wall Thickness	SCH10 SCH20 SCH30 STD SCH40 SCH60 XS SCH80 SCH100 SCH120 SCH140 SCH160 XXS
	Length	Single random length/Double random length 5m-14m,5.8m,6m,10m-12m,12m or as customer's actual request
Ends		Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc.
Surface Treatment		Bare,Painting black,varnished,galvanized,anti-corrosion 3PE PP/EP/FBE coating
Section Shape		Circle, Square, Rectangle
Technical Methods		Hot-rolled/Cold-rolled/Hot-expanded
Testing Methods		Pressure test,Flaw detection,Eddy current testing, Hydro static testing or Ultrasonic examination and also with chemical and physical property inspection
Packaging		Small pipes in bundles with strong steel strips,large pieces in loose; Covered with plastic woven bags; Wooden cases;Suitable for lifting operation;Loaded in 20ft 40ft or 45ft container or in bulk; Also according to customer's requests
Origin		China
Application		Boiler Pipe, Gas Pipe, OIL PIPE, Structure Pipe Conveying oil gas and water,construction
Third Party Inspection		SGS BV TUV etc
Trade Terms		FOB CIF CFR
Payment Terms		FOB 30%T/T,70% before shipment CIF 30% pre-payment and the balance to be paid before making shipment
MOQ		1 ton
Supply Capacity		5000 T/M
Transport Package		Standard sea freight packaging
Processing Service		Welding, Punching, Cutting, Bending
Delivery Time		Usually within 10-20 days after receipt of advance payment

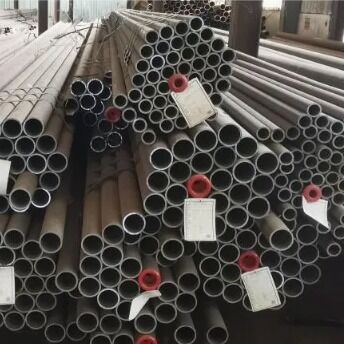

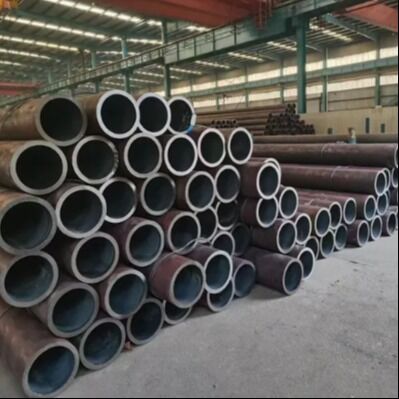

Product Photo

ASTM A355 P22 DN400 Sch80 Seamless Low-alloy Heat-resistant Steel Pipe 0

ASTM A355 P22 DN400 Sch80 Seamless Low-alloy Heat-resistant Steel Pipe 1

Application

Product Process

Packing & Delivery

ASTM A355 P22 DN400 Sch80 Seamless Low-alloy Heat-resistant Steel Pipe 4

Packing Details:

- Packing in bundles

- Packing in wooden cases

- Bulk shipment, without packing

- Export standard package, or as customers request.

Container information:
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
Delivery Details :

7-15 days, or according to the order quantity or upon negotiation.

Our Factory

Certificates

FAQ

Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available

Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q4. CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.

Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
